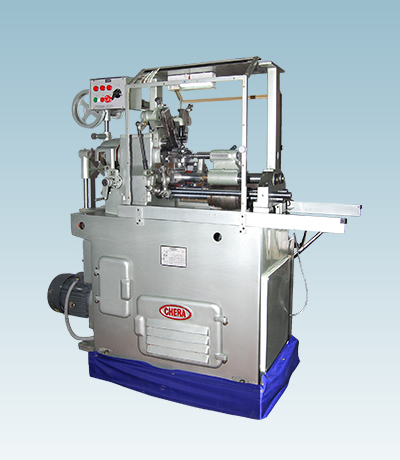

AUTOMATIC LATHE (TRAUB MACHINE)

CHERA Manufacturing Traub Machines since 1982. These machines are highly precision, sturdy & most economical cost effective. These are most suitable for mass production of precision parts and are find application in Electrical, Automobile, Electronics, Textile & General Engineering Industries. CHERA Traub are available in Six different Models : C15, C-25, C-30, C-32, C-42, C-60 & C-80mm for use in different type of Industries. These are extremely versatile machines that give big returns on small investments. More & More leading companies are using CHERA Traub Machines to create an infinite range of components. Over 5000 machines are giving satisfactory services to renowned industries all over India.

Four station turrets with threading facilities, Double drilling attachment, Cam setting devices, Drilling & threading attachments, Head over swing stop, Centering & Stopping Attachment, Long Turning Attachment and many other attachments are also offered by the company with the automates. Read more

These machines are also known in the market as Automatic Lathe, Single Spindle Automatic Lathe, Screw making machines, Automats, Cam Operated Automats, Bar Feed Automats.

CHERA also a manufacturer Second Operation Turret Lathes, (Capstan Lathe), Small Lathes which are complimentary machine to Traub Machine, for doing end operations after blanking on Automat.

MODEL C-15/25/30/32
Spindle Capacity-Round 15/25/30/32 mm
Square 10/18/21/22 mm
Hexagon. 12/22/26/27
Max. Turning Length 70 mm
Max. Capacity of
Tail Stock Collet
13 mm
Spindle Speed
(12 Step) rpm
900-6500/550-4000
Production Rate 28-2100 pcs/hr
Total Power Consumption 2 kw
Net Machine Weight 650 Kg. Approx.
MODEL C-32/36/42p
Spindle Capacity-Round 32/36/42
Square 22/25/29
Hexagon. 27/30/36
Max. Turning Length 70 mm
Max. Capacity of
Tail Stock Collet
13 mm
Spindle Speed
(12 Step) rpm
355-2640
Production Rate 28-2100 pcs/hr
Total Power Consumption 2.7 KW
Net Machine Weight 800 Kg. Approx.
MODEL C-42/60/80p
Spindle Capacity-Round 42/60/80
Square 29/42/55
Hexagon. 36/52/68
Max. Turning Length 100 mm
Max. Capacity of
Tail Stock Collet
28 mm
Spindle Speed
(12 Step) rpm
200-2000
Production Rate 10-1000 pcs/hr
Total Power Consumption 4.6 KW
Net Machine Weight 1200 Kg. Approx.

Standard accessories: Cross Slide, Tail-Stock with collet mechanism, Bar Feed Attachment, Electrical equipments with control panel, Motors, Coolant Pump with fittings, Set of change gears, Set of hand tools, Splash guards, Chip tray, Weights, Pusher rod, Rope for bar feed, Grease Gun, Stand.

Extra accessories: Double vertical slide, Long turning attachment, Automatic electric shutter, Piece counting attachment, All type of Tool holders, Centering and Stopping attachment, Cam Setting device, Over-head swing stop, Double drilling attachment, Thread milling attachment, Four station turret, Protective cover, Cl body base, Cams, Collets and extra tooling.
